RFN贴片微波负载电阻器AlN
RFN Chip microwave resistors
● 特征 featires
终端负载电阻器，使用在具有高功耗的高频电路中，安装在适当的散热器上，在高频功率下具有低的驻波比。
符合环保RoHS要求。
These high power devices are designed to dissipate power in R.f.Circuits when mounted to an appropriate heat sink. The terminatons provide a low VSWR under maximum power condition. RoHS conformity with the requirements of environmental protection.
● 材料
|
基片:氮化铝 Substrate:Berylium Oxide ceramic |
|
盖板:氧化铝 Cover:Alumina ceramic |
|
导电膜:厚膜 Resistive element:Thick film |
|
引出带:镀锡（银 金）铜带 Terminal tensile:Copper Sn (Ag Au) |
●技术说明 TECHNICAL SPECIFICATIONS
|
标称阻值 (Resistance value) 50Ω |
|
阻值精度 (Resistance tolerance) ±2% |
|
工作频率 (Frequency) DC-3GHz |
|
驻波比 (VSWR) 1.1：1 |
|
工作温度 (Work temperature) -55~ 125℃ |
● 尺寸 Size
● RFN

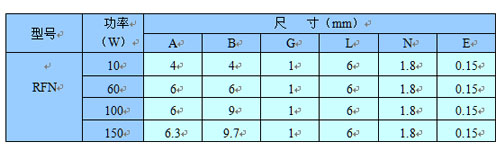

● 外形尺寸 DIMENSIONS
